Effect of Controlled Light Environment on the Growth and Ginsenoside Content of Panax ginseng C. A. Meyer

1. Operation of light environment control shade facility and growth condition

The experiments were performed in the experimental field at the department of Herbal Crop Research located in Eumseong, Chungbuk from March 28, 2014 to October 15, 2015. Pipes with diameter of 48㎜ were inserted into the ground at a depth of 0.6 m, and height measurement was adjusted to 2.5 m; dousers with width of 30㎝ were installed in blind form to control LTR. The ceiling was opened in the morning and closed after that at 11 AM every day. Of course, the ceiling was closed in the morning when it rained to prevent the occurrence of spread of disease such as alternaria blight by Alternaria panax, anthracnose by Colletotrichum gloeosporioides, and phytophthora blight by Phytophthora cactorum (Park et al., 2012).

Four- and two-black layer polyethylene shading nets were put on the timber A-type slant shade facility as a control plot. The test areas were 121㎡ for each treatment plot, and sudan grasses were sowed at the beginning of May 2013, harvested in the middle of July, and plowed up to 12 times at a 10-day interval with organic compost of 1,500㎏/10 a to manage the preparation field. 2-year-old violet-stemmed ginseng (2.5 ± 0.2 g) was planted at 72 plants/3.3㎡ in the east/west furrow direction, and disease/ pest prevention, weed removal, and other management were done based on the ginseng GAP standard cultivation guideline (RDA, 2009).

The external and internal radiation intensities of facilities were measured for 2 minutes and 3 times by LI-250A quantum sensor (LI-COR, Lincoln, NE, USA) at the height of the leaves to establish LTR following the light environment control; a thermometer (Thermo Recorder TR- 72Ui, T&D Corp., Tokyo, Japan) with data save function was hung around the leaves during the high-temperature period from July to August 2014 to measure the temperature.

2. Growth research and photosynthetic characteristics

The growth of the aboveground part was surveyed on July 21, 2014 and July 20, 2015; the underground part growth was researched for 30 weeks at random when all leaves fell by years. The leaf area was measured by the WindDIAS image analysis system (Delta-T Devices Ltd., Cambridge, England), length of stem and root, by general ruler, diameter of stem and root, by Digimatic calipers (Caliper 500-182, Mitutoyo, Kawasaki, Japan), and fresh root weight, by electronic scale (RE260, CAS, Seoul, Korea).

Data on chlorophyll content was printed out by putting the chlorophyll meter (SPAD-502, Konica Minolta, Tokyo, Japan) at the center of the leaf three times before harvesting the ginseng (Markwell et al., 1995).

The net CO₂ assimilation rate (An) and stomatal conductance (g_s) were measured by putting the LI6400 potable photosynthesis system (LI-COR, Lincoln, NE, USA) to which a 6㎠ leaf chamber was attached at the center of the leaf vertically at 9:00 AM and 3:00 PM on July 22, 2014. The internal conditions of the leaf chamber were set as follows: air influx rate of 500 μ㏖/s and CO₂ concentration of 400 μ㏖. The temperature was opened in order to interlock with the outside (Lee et al., 2012).

3. Analysis of leaf inorganic component

3-year-old ginseng leaves were harvested on July 20, 2014, cleansed with distilled water, and freeze-dried for 72 hours at −80℃. They were decomposed to 0.5 g pulverized dry samples by using nitric acid, perchloric acid, and hydrochloric acid in that order and diluted and filtered to a fixed quantity. P₂O₅, K₂O, MgO, CaO, Na₂O, Cu, Mn, Fe, and Zn were quantified (NIAST, 2000) by the ICP analyzer (GBC Scientific Equipment, Braeside, Australia).

4. Analysis of root ginsenoside

10 kinds of ginsenosides were analyzed by finally harvesting 3-year-old and 4-year-old ginseng roots. The 10 kinds of ginsenoside standard samples were Rb₁, Rb₂, Rb₃, Rc, Rd, Re, Rf, Rg₁, Rg₂, and Rh₁ (ChromaDex, Irvine, CA, USA), the solvent for analysis was GR-grade. For the ginsenoside analysis, 0.2 g ginseng powder sample and 1㎖ of 70% MeOH were put into a 2㎖ tube to mix them well. The mixture was then put in ultrasonic bath for extraction by ultrasonic wave at 50℃ for 30 minutes. The supernatant obtained by centrifugal separation (4℃, 15 min) at 13,000 rpm was put into a 2㎖ tube, and 1㎖ was refined by the Sep-Pak C₁₈ cartridge. The refined extract was filtered by a 0.45㎛ membrane filter for use as assay sample (Kim et al., 2008), and the ginsenoside content was measured using the Agilent 1100 series HPLC system (Agilent Technologies, Santa Clara, CA, USA). 10㎕ of the extract was injected using the Halo RPamide column (4.6 × 150㎜, 2.7㎛, Wilmington, DE, USA) and was analyzed at mobile flow velocity of 0.5㎖/min, column temperature of 50℃, and UV detector wavelength of 203㎚.

5. Statistical treatment

The results obtained from this experiment on the control group and treatment plot were analyzed via student's t-test using the SAS software package (SAS v9.2, SAS Institute Inc., Cary, NC, USA), and the difference was proven to be statistically significant when the p-value was under 0.05.

1. Comparison of cultivation environment and photosynthetic characteristics

The LTR of the conventional shading facility in 2014 was 7.0%, which was in the optimal LTR 5 - 20% range for ginseng growth; it coincided with the light environment in the inclined facility installed by most farmers and researchers (Cheon et al., 1991a, b).

In controlling the light environment, LTR was 17.9% before 11 AM; the light inflow rate was higher than the conventional shading facility, but it did not exceed 20% and became 3.4% when the light was almost blocked after 11 AM (Table 1). The average temperature during the day at the time (6 AM - 8 PM) the sun was up from July 1 to August 31 was 1.2℃ lower than conventional practice (27.1℃) when the light environment (25.9℃) was controlled. This was because the hot air was not stagnant but escaped between the sun visors (Fig. 1). The lower temperature than the conventional shading facility and LTR control following the temperature rise had a positive effect on the morning photosynthetic efficiency of 3-year-old ginseng (Fig. 2). In the morning, An was 5.9 μ㏖/㎡/s, and gs was 0.08㏖/㎡/s; these were about 2.8 or 2 times higher than conventional practice, as the radiation intensity did not reach the light saturation point at a relatively low temperature than the afternoon.

Table 1

Light transmission rates of control and blind-type shading facilities controlled at 11:00 AM.

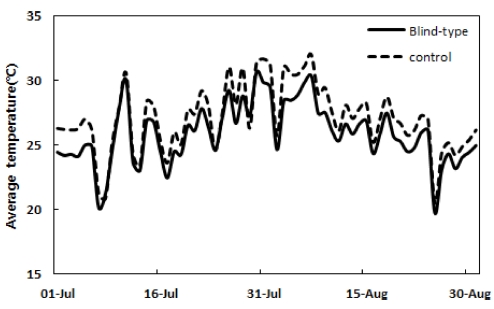

Fig. 1

Average temperature at 6 AM - 8 PM of control and blind-type shading facilities from July 1, 2014 to August 31, 2014.

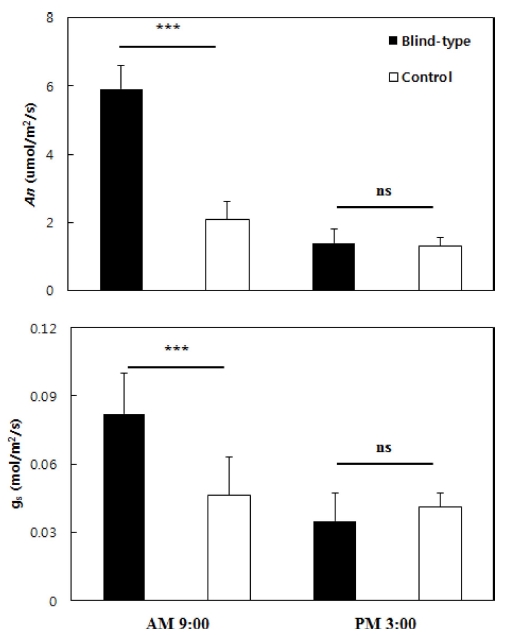

Fig. 2

Net CO2 assimilation rate An and stomatal conductance gs of 3-year-old Panax ginseng grown in control and blind-type shading facilities at 9:00 AM and 3:00 PM on July 22, 2014.The vertical error bars represent the standard errors (n = 5). *p < 0.05, **p < 0.01, and ***p < 0.001 compared to the control. NS; Not significant.

Being put in a light environment wherein photosynthetic action could be carried out smoothly seemed to be the major reason unlike the control plot with limited An (Jochum et al., 2007). In addition, ginseng leaves exposed to strong light consistently or intermittently had high light adaptability, so An was formed more smoothly (Jang et al., 2015; Mo et al., 2015). This was because the photosynthetic efficiency in the morning was considerably different. Although the conventional facility’s LTR was more than 2 times higher in the afternoon, no statistical difference was found not only in An but also in gs due to the effect of the temperature rise.

The chlorophyll content of ginseng was higher in the 4- year-old one than in the 3-year-old one. This is because the formation of the leaves is ecologically stable, and mesophyll cells become thick in the 4 - 6-year-old aged roots (Fig. 3). In the ginseng leaves, the reduction of chlorophyll content by oxidized stress is distinct if light quantity exceeding the light saturation point enters (Yang et al., 1994). Although there is a difference according to the environment, if LTR exceeds 20%, this phenomenon becomes more serious because, if the leaves receive more light than the ones to be used, the response center of the light system II becomes inactive due to the photoinhibition phenomenon (Ort and Baker, 1988).

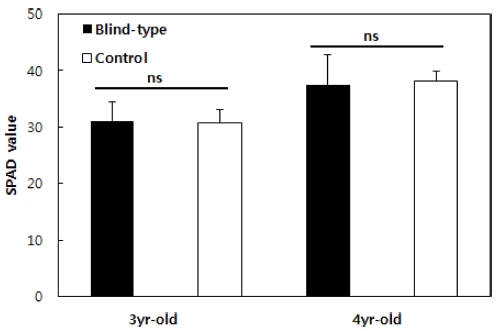

Fig. 3

SPAD value of 3- and 4-year-old Panax ginseng grown in control and blind-type shading facilities on July 21, 2014 and July 20, 2015.The vertical error bars represent the standard errors (n = 30). *p < 0.05, **p < 0.01, and ***p < 0.001 compared to the control. NS; Not significant.

As seen in the data, however, although LTR was high in the morning when the light environment was controlled, there was no difference from the control in terms of chlorophyll content. Dynamic photo-inhibition is observed at moderate light. Although the quantum efficiency decreases, the photosynthetic speed does not change. The reason for the dynamic photo-inhibition is that the absorbed light energy is transferred to the heat dissipation, and quantum efficiency declines (Tyystjarvi et al., 1991). Since this reduction is temporary, if the photon flux drops below the saturation level, it can be restored to the original high value.

2. Growth of ginseng

There is a difference depending on the environment and kind. Proctor et al. (2010), who tested on P. quinquefolius, reported that, when LTR increased to 30%, the aboveground part and underground part growth increased. Kim et al. (1982) claimed that the ginseng that grew in the front row of the shading facility where relatively more light shone grew better than the ones that grew in the rear row. According to our test, where the light environment was controlled, the light influx in the morning could increase the aboveground part growth of ginseng compared to the control (Table 2).

Table 2

Growth of aerial part of 3- and 4-year-old Panax ginseng grown in control and blind-type shading facilities on July 21, 2014 and July 20, 2015.

In particular, the area of the leaves as the light acceptor broadened by 34% on 3-year-old ginseng in 2014. The increase of leaf area and An in the morning led to the enhancement of the root, which was the storage of metabolite, affecting the growth of the 4-yearold ginseng the following year (2015) because the growth of ginseng that year is greatly influenced by the prolificacy of the previous-year ginseng. Jang et al. (2015) reported that the leaf area became broad when LTR increased up to 17% in the case of 2-year-old ginseng; this is because, when excessive light shone after the leaves became broad up to a certain level, the leaves diminished, recognizing it as stress.

In the end, the light environment regulation for 2 years based on 11 AM increased the root weight of the 4- year-old ginseng by about 81% compared to the control (Table 3). Meanwhile, as blind-type shading facility was continuously controlled after the end of the sweltered July, leaf burn of ginseng rapidly happened. It assumed that dry damage was also partially generated because of lowered soil and air humidity.

Table 3

Growth of the subterranean part of 3- and 4-year-old Panax ginseng grown in control and blind-type shading facilities on the final harvest day.

3. Analysis of leaf inorganic component and root ginsenoside

As shown in Table 4, P₂O₅, K₂O, MgO, CaO, Na₂O, and Cu had no statistically significant difference. Note, however, that there was a big difference in Mn, Fe, and Zn. Fe is a component of hemoprotein and Fe-S protein existing in the redox system, and about 80% exists in chlorophyll. Table 5

Table 4

Inorganic component contents of 3-year-old Panax ginseng leaf grown in control and blind-type shading facilities on July 21, 2014.

Table 5

Ginsenoside contents of roots of 3- and 4-year-old Panax ginseng grown in control and blind-type shading facilities on the final harvest day.

Since Fe is a component of aconitase, an enzyme that changes the citrate into insocitrate during the Krebs Cycle, if Fe is deficient, organic acid is accumulated, carbohydrate metabolism is affected, and redistribution does not occur in the plant; thus, the chlorophyll content of the young leaves is low, and the leaves become chlorotic (Jeong and Guerinot, 2009). Although the chloroplast source of Fe is not well-known with regard to the synthesis of the photosynthetic cofactors, ferritin, an Fesaving protein, will be relevant because the buffer action such as saving Fe is done to avoid excessive oxidative stress (Yruela, 2009).

Mn and Zn are indispensable mineral elements in photosynthesis in association with the superoxide dismutase; according to our experiment, it seems to have decreased somewhat as the benefit in return, i.e., Fe accumulated on the leaves (Armstrong, 2008).

Well-known as one of the medicinal properties, ginsenoside acts as the indicator that evaluates the quality of ginseng. Ginseng that is inevitably exposed to various kinds of stress for years or dozens of years in one place produces the saponin ingredients for the purpose of protecting itself (Choi et al., 2005).

In this experiment, which controlled the light environment, the amount of ginsenoside consisting of 10 kinds Rb₁, Rb₂, Rb₃, Rc, Rd, Re, Rf, Rg₁, Rg₂, and Rh₁ increased regardless of life in years, although the biomass of ginseng increased. The ginsenoside content increased more in the 4- year-old ginseng than in the 3-year-old ginseng. When the light environment was controlled, the increase range (36%) was 13% higher than the control (23%). Although the study result was opposite to the one (Han et al., 2013) stating that the ginsenoside content was low when the ginseng was heavy in conventional cultivation, light stress is considered one of the environment factors wielding a big effect on the ginsenoside content increase of ginseng (Jang et al., 2015).

In sum, light environment control before and after 11 AM could increase the photosynthetic efficiency without a change in chlorophyll content, although LTR was high because of the low temperature in the morning. The aboveground part growth of the ginseng that adapted to the light environment increased to affect the root weight, and the total ginsenoside content of the 4-year-old ginseng multiplied by 2.37 times compared to the control due to proper light stress. Therefore, if light environment management according to the photosynthetic nature of the ginseng is carried out, it will be possible to produce large-capacity, excellent-quality ginseng.
